7" Wing Plate Kennel Fan
7" Wing Plate Kennel Fan
from $181.99
Features:
Wing Plate
2 speeds - Low and High
Low setting draws 1.6 amps
High setting draws 2.0 amps
Powered by 12V DC
Airflow: 450 CFM on Low, 550 CFM on High
8"w x 11.125"h x 2.75"d
Fits the majority of popular kennel doors/sizes

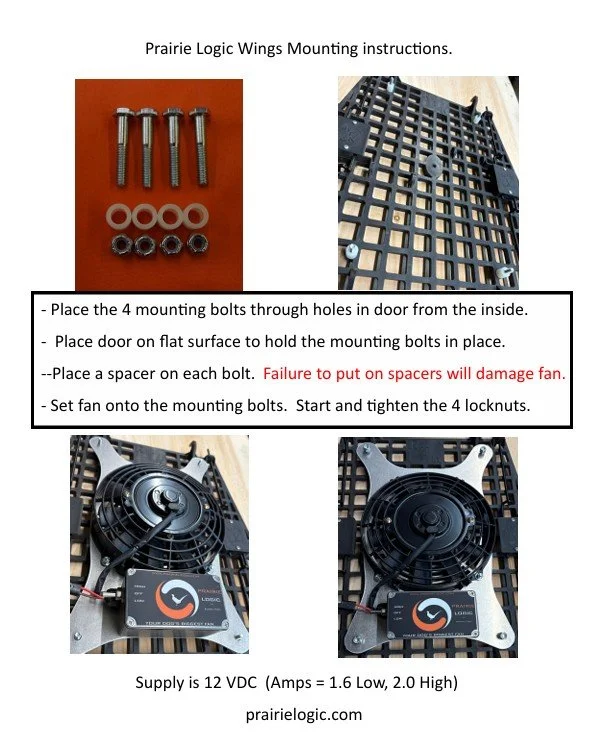

Bolds directly to the molded holes on Intermediate & Large RuffLand kennel doors
Power supply not included (options available below)
*Kennel Not Included
Available Options:
Quantity:
Additional Information:
- Fans have been field tested and are proven to withstand the weather, including rain, snow, humidity, and all sorts of temperature variations. The fans can also handle the vibrations of riding in the back of a vehicle.
- Flip the switch to desired level (Low or High) to maximize pet comfort.
- Additionally, dogs find the "white noise" from the fans relaxing. Continuous, positive air flow through the kennel also cuts down on flies and mosquitoes, while increasing comfort.
- 1 Year Limited Warranty
- Low setting minimizes power draw - less than 2 amps.
- This allows you to leave the fan turned on even when your vehicle is shut off. We routinely leave fans on overnight without concern. Keep in mind that car battery age and condition of the fan play a role here.
- *CFM (cubic feet per minute) is a standard measurement of airflow that indicates how many cubic feet of air passes by a stationary point in one minute. The greater the number, the more air that is being forced through the fan. For example, a typical large kennel is approximately 12 cubic feet, so this fan on "High" is capable of completely replacing that volume of air around 45 times per minute.







Plug in and power up right from your vehicle.
This 8-foot power cord connects your Prairie Logic kennel fan to your vehicle’s 7-pin trailer plug, giving you a convenient power option without running directly to the battery. It’s a clean, simple setup for keeping your fan running while you’re on the move.
Built for real use:
8’ length for easy reach from your vehicle’s rear connection
Designed for use with standard 7-pin round trailer plugs
Durable construction for every day, on-the-road conditions
Important Power Info (Quick Check Before You Plug In)
Not all vehicles supply constant 12V power to the 7-pin connector.
Your vehicle must have auxiliary power active at the rear plug
On some vehicles, the key must be turned on for power to flow
If your plug isn’t powered, check your owner’s manual or contact your dealer
You can also test your connection using a voltmeter or test light to confirm power before use.
